Measured fixture data

Fixture Tests & Manuals

Spectrum built. Output measured. ProTerp uses deliberate multi-band spectra, independent control on select channels, and sphere-tested output.

Compare the documented test basis for each current ProTerp fixture and find its available reports and operating manuals.

ProTerp documentation

Current fixture resources

Compare measured performance, open available test reports, and download operating manuals for current fixtures.

ProTerp Series

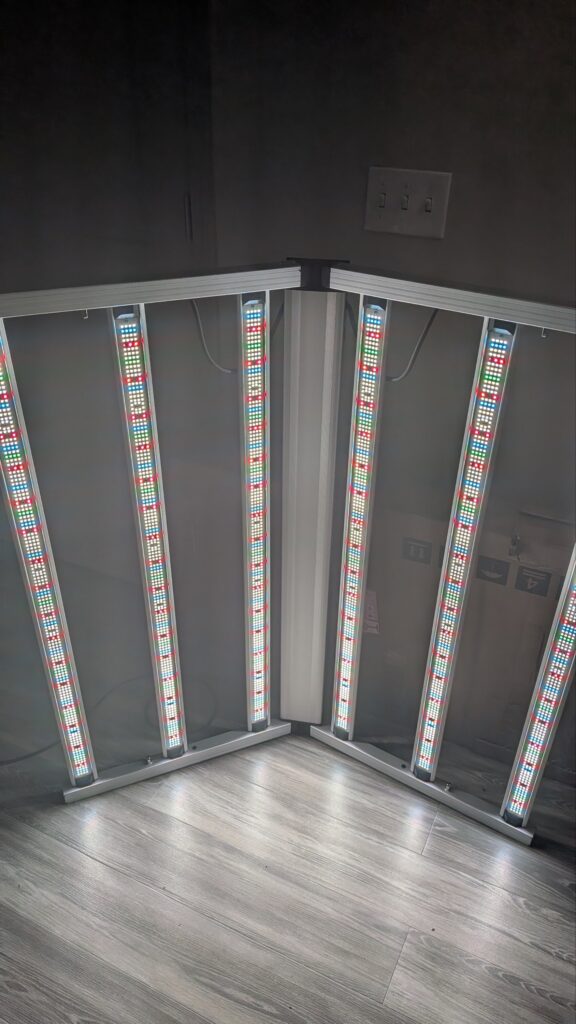

ProTerp 600W

The 2026 600W ProTerp Series redefines what’s possible from a premium full-spectrum LED grow light, delivering up to 3.20 ePPE without sacrificing spectral quality. Featuring a true Triple Blue platform (437nm + 450nm + 480nm Cyan/Teal), Dual Red architecture (640nm + 660nm), and an independently dimmable 730nm Far Red channel, it’s engineered for exceptional canopy penetration, balanced morphology, elite terpene production, and top-shelf harvest quality.

Power609.4W
PPF1,908 µmol/s
PPE3.131 µmol/J
CRI93.2

Test basis: Standard + 640 nm Dual Reds + independently dimmable 730 nm Far Red configuration; 730 nm channel disabled.

View fixture

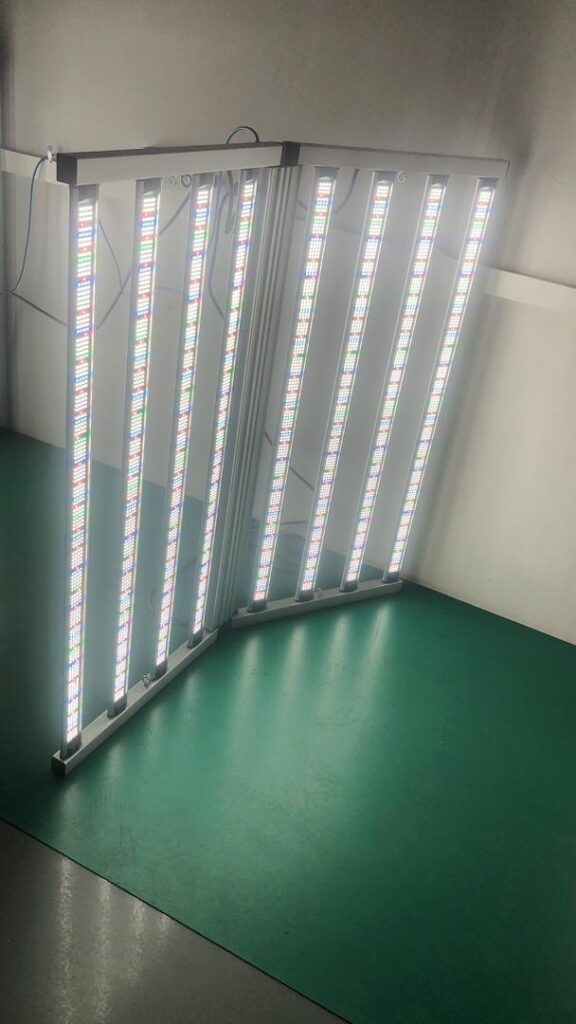

2026 800W ProTerp CMH/Sunlike Full Spectrum LED w/ triple blue + green + Dual Red + Dimmable Far Red

ProTerp Series

ProTerp 800W

The 2026 800W ProTerp Series represents the next generation of high-performance horticultural lighting, combining up to 3.25 ePPE with a true CMH / Sunlike spectrum. Its Triple Blue platform (437nm + 450nm + 480nm Cyan/Teal), Dual Red architecture (640nm + 660nm), and independently dimmable 730nm Far Red channel deliver exceptional spectral balance, deep canopy penetration, superior flower quality, and industry-leading efficiency without the compromises of conventional red-heavy LEDs.

Power814.6W
PPF2,633 µmol/s
PPE3.23 µmol/J
CRI87.4

Test basis: 800W Standard + 640 nm Dual Reds + independently dimmable 730 nm Far Red configuration; 730 nm channel disabled.

View fixture

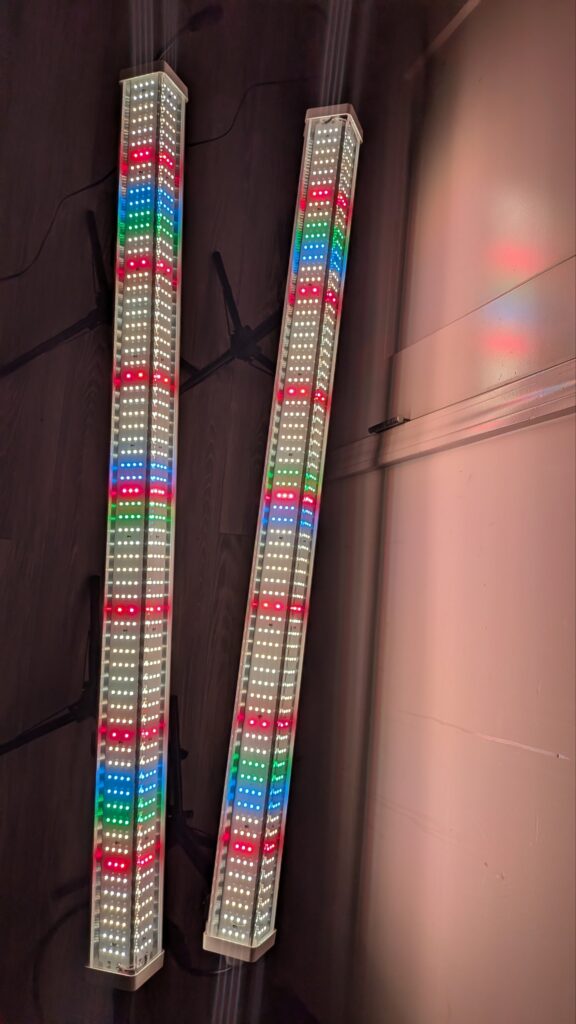

2026 ProTerp Under Canopy CMH/Sunlike Spectrum 2.85 PPE

ProTerp Series

ProTerp Under Canopy — 2-Pack

Purpose built for growers looking to maximize lower-canopy performance. The 2026 ProTerp Under Canopy combines a CMH/Sunlike inspired spectrum with triple blue, dedicated green, dual red, and 2.85 µmol/J efficiency to deliver balanced supplemental lighting beneath the canopy. 2 pack

View fixture
